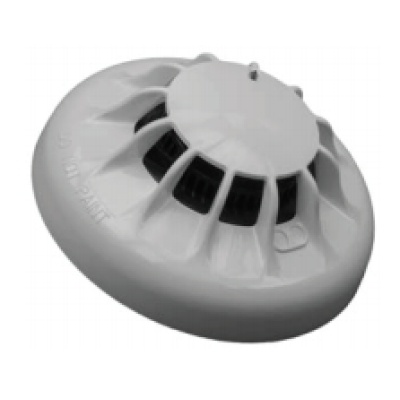

Tyco Fixed 90°C Detector 713H (516.900.105)

Product No.：713H (516.900.105)
Online Inquiry

Brand: Tyco

Model: 713H (516.900.105)

Description: Fixed 90°C Detector

Tyco 516.900.105 713H Fixed 90°C Detector - Marine

The 713H uses fixed temperature sensing. It is a category CS heat detector. C denotes a static response temperature of 84°C to 100°C (EN54-5). The suffix S denotes that the detector does not respond at a lower temperature, even at high rates of rising air temperature.

The 700 series detectors are for use in conventional two wire detection systems, where detectors are normally connected in zones. Each detector samples the ambient air every five seconds and if a fire condition is detected, a signalling current is drawn from the zone causing the Control and Indicating Equipment (fire alarm panel) to provide an alarm response for that zone.

Key Features：

Marine

Uses fixed temperature sensing

Category CS heat detector

Designed for use in conventional two wire detection systems

Drop-in replacement for, and are backwards compatible with the legacy 600 Series

Approved by major classification societies for use on vessels

Superior performance, reliability and false alarm rejection

Designed for fast, easy installation

Low operational voltage

Compatible with 4B, 4B-D, 5B and 5B-D bases

Approval to EN54, MED and IACS
