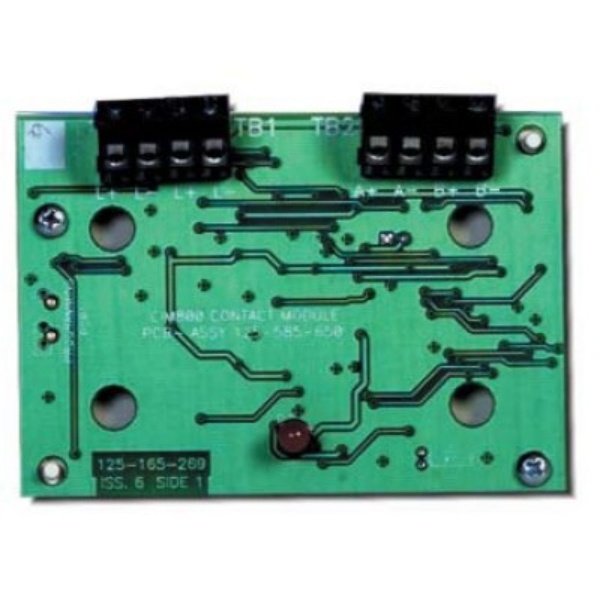

Tyco Contact Input Module CIM800（555.800.002）

Product No.：CIM800（555.800.002）
Online Inquiry

Brand: Tyco

Model: OCM800（557.202.013）

Description: Contact Input Module

Tyco CIM800 Contact Input Module Minerva MX (555.800.002)

The CIM800 is a flexible addressable input-monitoring device that fits in the standard ancilliary housings. The CIM800 provides two inputs to current MX panels though this can be implemented as two seperately wired spurs (style B) or as a loop (style A) Both spur and loop input wiring can be configured to monitor normally open or normally closed inputs.

In addition both can be configured to initiate an alarm or shot circuit fault message in the event of a short circuit on normally open monitoring circuits.

Key Features：

Loop Voltage1 20V to 40Vdc

Quiescent Current 275µA

Alarm State Current 2.8mA

Circuit Resistance 10 Ohm

EOL Resistor 200 Ohm

Alarm Resistance (s/c fault) 100 Ohm

Max. CIM800 per Loop2 200/250

Ambient Temperature –25°C to +70°C

Storage Temperature –40°C to +80°C

Relative Humidity 10% to 95% (non cond.)
