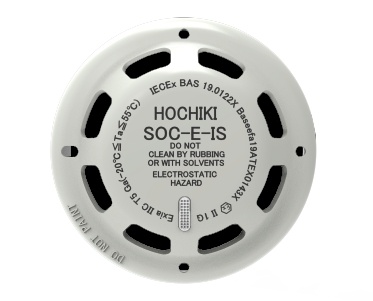

Hochiki Smoke Detector SOC-E-IS

Product No.：SOC-E-IS
Online Inquiry

Brand：Hochiki

Model：SOC-E-IS

Description： Smoke Detector

SLR-E-IS Description

The SOC-E-IS is a Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional systems. The SOC-E-IS incorporate Hochiki's unique High Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications.

‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily

removed or replaced for cleaning and utilises a unique baffle design which allows smoke to enter the chamber whilst keeping out ambient light.

Features

- Removable, High Performance chamber

- Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology

- Remote Indicator output

- Wide voltage range (9.5 ~ 30 VDC)

- Low profile design with one piece outer cover

- Single fire LED - 360° viewing

- ATEX Classification to: Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C)

- Suitable for installation in areas at Category 1 (inc all lower categories)

- Approved by LPCB & VdS

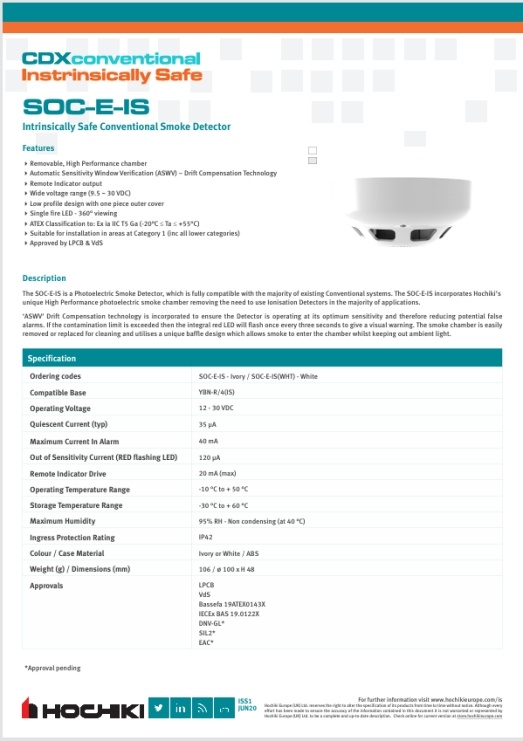

Specification
