Products >> Marine Safety >> Hochiki
Brand：Hochiki
Model：DCD-CE3M
Description：Heat Detector

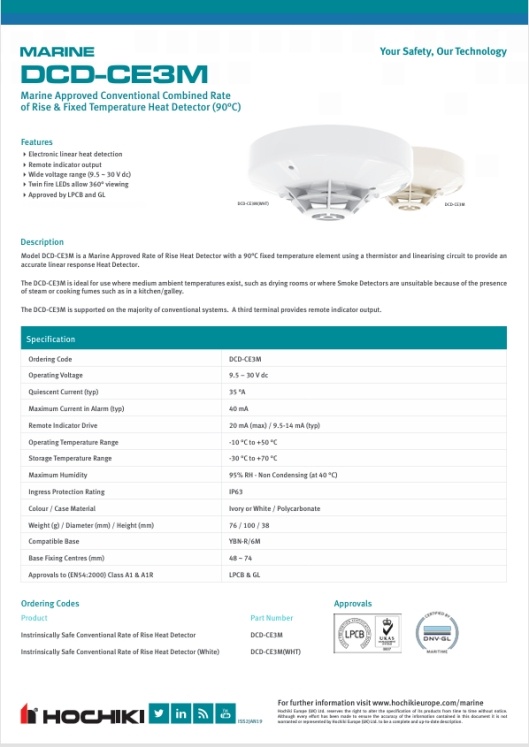

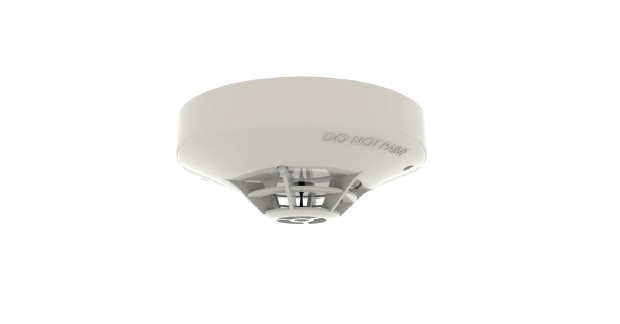

DCD-CE3M Description
DCD-CE3M is a Marine Approved Rate of Rise Heat Detector with a 90°C fixed temperature element using a thermistor and linearising circuit to provide an
accurate linear response Heat Detector.
DCD-CE3M is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence
of steam or cooking fumes such as in a kitchen/galley.
DCD-CE3M is supported on the majority of conventional systems. A third terminal provides remote indicator output.
DCD-CE3M Features & Specifications
- Electronic linear heat detection
- Remote indicator output
- Wide voltage range (9.5 ~ 30 V dc)
- Twin fire LEDs allow 360° viewing
- Approved by LPCB and GL
Ordering Code: DCD-CE3M
Operating Voltage: 9.5 – 30 V dc
Quiescent Current (typ): 35 °A
Maximum Current in Alarm (typ): 40 mA
Remote Indicator Drive: 20 mA (max) / 9.5-14 mA (typ)
Ingress Protection Rating: IP63
Colour / Case Material: Ivory or White / Polycarbonate
Weight (g) / Diameter (mm) / Height (mm): 76 / 100 / 38
Compatible Base: YBN-R/6M
Base Fixing Centres (mm): 48 ~ 74
Approvals to (EN54:2000) Class A1 & A1R: LPCB & GL
Previous Product：Hochiki Smoke Detector SOC-E-IS
Next Product：Hochiki HCP-W（SCI）
